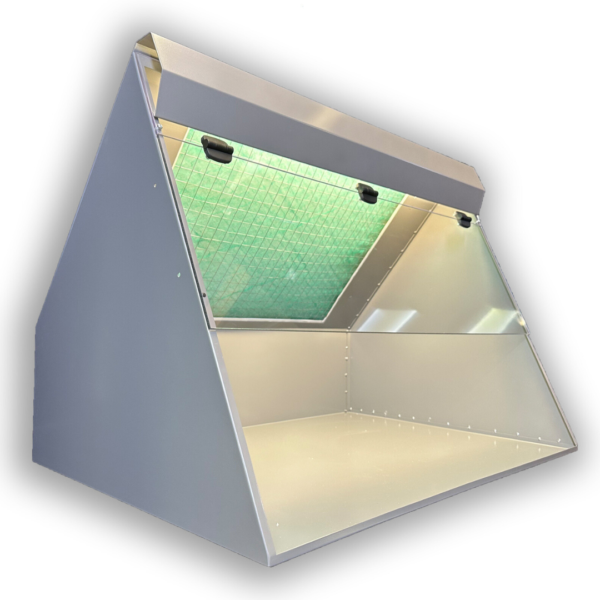

Superior Air Filtration Cabinet 710m3/hr

Our Air Filtration Cabinet 710m3/hr hood mounted filtration cabinet with a high-efficiency carbon filter specifically designed to provide local exhaust ventilation in areas where it’s not possible to use ducted lev unit or fume filtration cabinet.

Applications:
The is for use in areas where external venting is impractical and hydrocarbon vapor and gas filtration is necessary. This unit is capable of filtering fumes, vapours and particles from:

Electrochemicals (cleaning solvents, conformal coatings, etc)
Resins
Seatlant and adhesives both in aerosol and static form
Solder pots and soler irons
The is also used in orthopedics and dental laboratories to control staff exposure to methyl methacrylate and cyanoacrylate adhesives. It’s also used to for safe weighing of hazardous powders.

Description

Steel construction finished in dove grey RAL9007 – fan/filter unit mounted onto hood enclosure – particulate filter – carbon impregnated fibre filter– 2 x axial fans, external rotor motor type brushless, UL, VDE and CSA approved – sealed electrical wiring and switch, downstream of filters.

Operation

All BV filtration and extraction systems carry a lifetime warranty, are quiet in operation and can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on.

For artwork applications, standard A1 drawing boards can be placed within the hood enclosure. The boards fit at an angle for efficient over-

spray capture. 3D items, models, printed circuit boards etc. may be placed onto the hood base for spraying, cleaning, sanding etc.

Filtration

The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The carbon impregnated fibre filter (behind intake) assists in the reduction of solvent odours.

Through the process of filtration, adsorption and dilution, operator exposure to concentrations of potentially hazardous substances is vastly reduced.

Key Features of the Air Filtration Cabinet 710m3/hr:

Clear polycarbonate panel for protection
Hood lighting
Large capacity making it ideal for a wide range of uses
What’s included with the ?
Filter unit with fan(s)
Hood Enclosure
Hood Light
Polycarbonate hinged front panel
1 x Particulate filter
1 x Activated Carbon Filter
Power Lead
Data/Warranty Booklet
